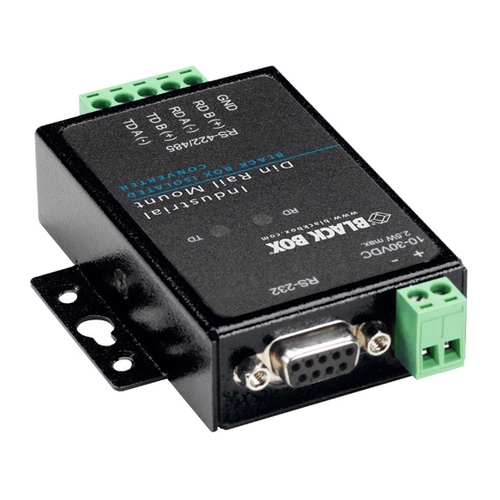

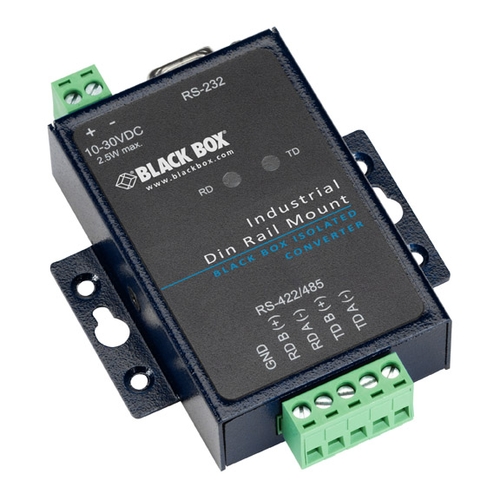

Convert async RS232 to RS422/485 at speeds up to 460.8 kbps with distances up to 4000 ft over CATx cables in industrial environments with DIN Rail mounting.
Designed and tested to meet heavy industrial EMC standards and temperature extremes
Features 10–30-VDC operation and withstands temperature extremes of -40 to +176° F (-40 to +80° C)
Designed to protect expensive control equipment
Offers 2-kV isolation with ESD protection
8-kV contact; 15-kV air ESD protection
Built-in switchable bias and termination
Rugged IP30-rated metal case
Garantie: 1 an Double Diamond™ Garantie (par défaut)
UL® approved.
8-kV contact; 15-kV air.
Built-in switchable bias and termination.
Converts unbalanced half- or full-duplex RS-232 signals to balanced full-duplex RS-422 or 2-wire half- or 4-wire full-duplex RS-485.
Rugged IP30-rated metal case.
Supports a wide range of data rates.
Includes mounting ears for attaching to a panel.
It can also be conveniently mounted on a DIN rail with an optional clip (ICD11MNT).
CE Approval Yes Operating Environment Temperature: -40 to +176° F (-40 to +80° C); Humidity: Up to 95%, noncondensing Operation RS-232: Half- or full-duplex; RS-422: Full-duplex; RS-485: 2-wire half-duplex or 4-wire full-duplex Power +10 to 30 VDC from an external power supply (if needed, please contact Black Box Tech Support) Speed 460.8 kbps Connectors (1) 5-Position Terminal Block (RS-422/485); (1) DB9 (Female) (RS-232 DCE); (1) 2-Position Terminal Block (Power) Dimensions 3.9"H x 2.9"W x 0.9"D (9.9 x 2.3 x 7.4 cm)
